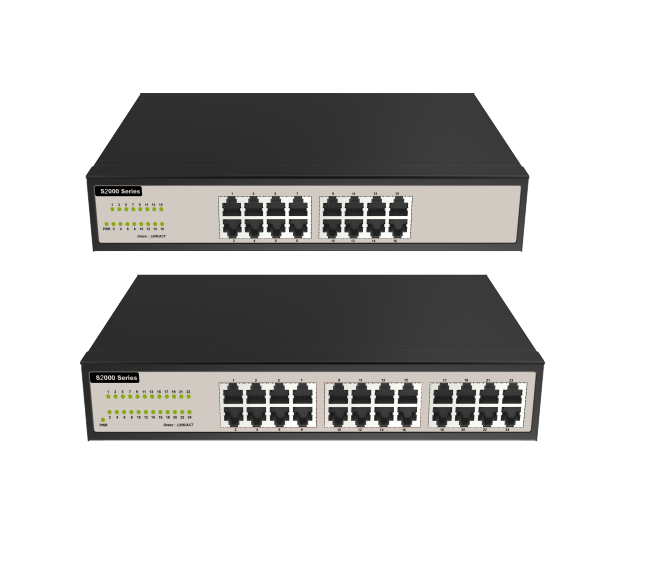

HS2000-2024 Managed Layer 2 Ethernet Switch Industrial Switch

＞ Support up to 24 100M electrical ports
＞ Support IEEE802.3/802.3u/802.3x store and forward mode
＞ Support full/half duplex, MDI/MDI-X adaptive function
＞ Support high backplane bandwidth, large capacity cache, and ensure port wire speed forwarding
＞ Support broadcast storm suppression function to improve network stability
＞ AC power supply, non-polar power supply design
＞ - 40 ° C~+75 ° C wide temperature design ensures that the equipment can adapt to various harsh site environments
＞ IP40 level protection, corrugated high-strength metal shell, fanless, low power consumption design
＞ lEC CIass. A electromagnetic protection level, ultra-high EMC

HS2000-2024 Managed Layer 2 Ethernet Switch Industrial Switch is a intelligent network switch that meets the requirements of industrial design. It adopts mature technology and open network standards, has a compact shape, visual WEB management, and simple and clear operation. The managed switch adopts a new generation of Ethernet chips and innovative architecture design to achieve the lowest energy consumption for accessing dry megaswitch, bringing green, environment-friendly and energy-saving products to users. Suitable for low temperature and high temperature, strong anti electromagnetic interference, anti salt fog, anti vibration, equipped with AC power supply.

HS2000-2024 Managed Layer 2 Ethernet Switch Industrial Switch is positioned at the network access layer and supports 16 100M electrical ports or 24 100M electrical ports. It can be used in a variety of field environments, flexibly networking, and widely used in industrial control automation, road traffic control automation, building automatic control systems, small and medium-sized parks, computer room monitoring systems and other application scenarios to provide high-performance, simple deployment, easy installation, stable, reliable and efficient network environment.

Interface information

Gigabit electrical ports: up to 24 10/100Base-T (X) RJ45 interfaces

Power interface: AC power interface

Environmental requirements

Operating temperature: - 40 ° C~+75 ° C

Storage temperature: - 40 ° C~+85 ° C

Relative humidity: 5%~95% (non condensing)

MTBF: 100000 hours

Swap Properties

MAC address table: 2K

Forwarding method: store and forward

Cache size: 1M

Mechanical structure

External dimension: 282.2mm (H) x 178mm (D) x 44mm (W)

Installation mode: desktop type, rack type

Weight: ＜ 1.5kg

Protection grade: IP40

Transmission distance:

Twisted pair: 100M (standard CAT5/CAT5e cable)

Power requirements

Working voltage: AC100~240V or DC100~300V (rated input)

Overall power consumption<7W

Software features

Multicast support: support IGMP Snooping

VLAN: support IEEE 802.1 Q4K VLAN

QOS: supports COS, DSCP, 4 queues, and WRR HQ WRR dispatching mode

Diagnostic maintenance: supports port mirroring and system logs

Ports: support viewing all port statistics, resetting port statistics, and simple port interworking settings

Management function: support WEB, SNMP management mode, support configuration management

Alarm management: support TRAP alarm

Security functions: support IEEE802.1X, hierarchical user management, ACL access control list, and port based MAC filtering/binding

Data control: support port speed limit based on ingress/egress, support half duplex back pressure flow control and 802.3X full duplex flow control, and support storm suppression based on broadcast, multicast, and unknown unicast

Key control: support one key restart, one key restore factory settings

Indicator lights

Power indicator: PWR

Port status indicator/port connection status indicator: optical port LINK/SPD indicator, electrical port ACT/SPD indicator
